ICOM IC A24 Nav Com Tranceiver - The pilot's favorite handheld Nav Com Tranceiver is here!

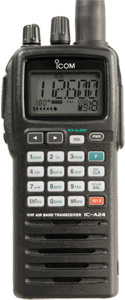

ICOM IC-A24 NavCom Transceiver

ICOM IC-A24 Nav Com Transceiver


Easy to use while flying. Simple one-handed operation is the most essential feature of ICOM's IC-A24/A6 Nav Comm Transceiver. The well labeled, large keypad provides user friendly operation. The large display shows both letters and numbers and is easy to see, making for fast frequency recognition. The display is backlit, and so is the keypad. The light stays on until you turn it off - a very handy feature for flying at night.

“Flip-flop” channel recall
The IC-A24/A6 aviation transceiver stores the last 10 channels used. You can easily recall those channels by pushing the “flip-flop” recall buttons on the front panel. It is convenient for switching between several channels, such as NAV and COM channels.

VOR navigation*
The IC-A24 transceiver has VOR navigation functions. The DVOR mode shows the radial to or from a VOR station and the CDI mode shows the course deviation to/from a VOR station. You can also input your intended radial to/from the VOR station and show the course deviation on the display. In the USA version, the duplex operation allows you to call a COM channel, while you are using VOR navigation.
* IC-A24 only

External DC power jack
An external DC power jack allows for operation with the wall charger, BC-110 or the cigarette lighter cable, CP-20. When the battery pack is installed, simultaneous charging during operation is also possible. In addition, an optional battery case, BP-208N, is available.

Water resistant construction
The water resistant construction provides reliable operation in wet conditions.
* Equivalent to IPX4 of the corresponding international standard IEC 60529 (2001).

And more...

  • 200 memory channels (20 Ch 10 banks) with 6 character names
  • Dedicated 121.5MHz emergency key
  • Side tone function allows you to hear your own voice via an external aviation headset.
  • Optional Ni-Cd and Li-Ion battery packs
  • NOAA marine weather channels
  • Tag scanning and memory bank scanning
  • ANL (Auto Noise Limiter) for noise reduction
  • Low battery alert

ICOM A24 Nav/Comm Transceiver comes with the following accessories:

  • Battery Pack
  • Wall Charger
  • Antenna
  • Belt Clip
  • 3 Year Manufacturer's Warranty
  • Owner's Manual

General
Frequency Coverage
Tx/Rx
Rx
Weather
:
118.000-136.975 MHz
108.000-117.975 MHz*
161.650-163.275 MHz
* IC-A24 Only
Mode
WX
: AM (6K00A3E)
FM (16K0G3E)
Channel spacing : 25 kHz
No. of memory channels : 200 (20 Channels X 10 banks)
Power supply requirement : 7.4/7.2V DC (Battery pack)
11.0V DC (External DC jack)
Current drain (at 7.2 V DC)
Tx
Rx Max. Audio
Rx Stand-by
:
1.5 A typical
300 mA typical
70 mA typical
Frequency stability : 5 ppm
Operating Temperature Range : -10C to +60C; -14F to +140F
Dimensions (WHD)
(projections not included)
: 54(W) x 129.3(H) x 35.5(D) mm;
21/8(W) 53/32(H) 113/32(D) in
Weight
(with antenna and BP-210N)
: 430 g; 15.2 oz
Antenna connector : 50Ω BNC type


Transmitter
Output power (at 7.2 V DC) : 5.0 W typ. (PEP)
1.5 W typ. (CW)
Modulation system : Low level modulation
Modulation limiting : 70-100%
AF harmonic distortion : Less than 10% (at 60% mod.)
Hum and noise ratio : More than 35 dB
Spurious emissions : Less than 46 dB (except operating freq. 62.5kHz point)
Microphone impedance : 3-conductor 2.5 (d) mm (1/10") / more than 100kΩ


Receiver
Intermediate frequency : 1st: 30.05 MHz
2nd: 450 kHz
Sensitivity (typ)
VOR (AM 6dB S/N)
COM (AM 6dB S/N)
WX (FM 12dB SINAD)
:
Less than 0.71 V
Less than 0.5 V
Less than 0.22 V
Selectivity : More than 7.5 kHz/-6 dB
Less than 25 kHz/-60 dB
Hum and noise ratio : More than 40 dB
Spurious response
AM
FM
:
More than 60 dB
More than 30 dB
Audio output power : More than 500 mW typ. with an 8Ω load, 30% modulation
Ext. speaker connector : 3-conductor 3.5 (d) mm, (1/8") / 8Ω

For more information, please refer to the ICOM A24/A6 Transceiver User Manual. Downloads in PDF Format.

Can't decide? See our Nav Aviation Transceiver Comparison Chart.

Price: $308.00
Buy Product Online | Visit Store Home

Manufactured by ICOM
