APU RB14/28-25 Piper Version

DB Assembly

B-142825P

APU/CHARGER B-14/28-50P -Piper & Cessna Plug

APU/CHARGER B-14/28-50P -Piper & Cessna Plug	B-142825P

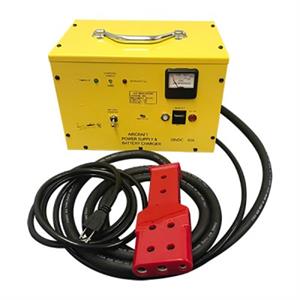

The D B Assembly, Inc B-14/28-25P APU is designed to operate avionics equipment in private and commercial aircraft. Comes with both 3-pin Cessna plug and the single pin Piper Plug.

Our Price: $1,599.00

Quantity:

Detailed Description

Does not ship for free due to the size and weight of the box. Please choose a shipping method accordingly.

The B-14/2850 plugs directly into the aircraft APU connector and is tied to the electrical system when the master switch is activated. Selection of output voltage is by a front panel switch which is protected by a switch guard. Closing the guard forces the switch to the 14 volt position.

The P-1450 series plugs directly into the aircraft APU connector and is tied to the electrical system when the master switch is activated.

This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

The battery charging mode is selectable by a front panel switch. The charging process is fully automatic. When the charge is in progress a red LED is illuminated. This is replaced by a green LED when the aircraft battery is fully charged. The on/off switch on the unit also resets the unit.

Features:

50 amperes filtered 14 & 28 volt supply
Dual charging capability from 14 to 28 volts
Aircraft APU connectors furnished
Operates from 115 VAC, 60 Hz
AC circuit breaker included
8 foot DC cable furnished
Weighs only 50 pounds. “Portable”
Ferro-resonant regulated supply
One year warranty
Extensive testing by FBO's
