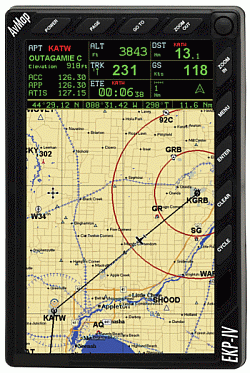

AvMap EKP-IV GPS
|
AvMap EKP-IV GPS features:
STILL the largest screen (7" diagonal)
Compact, sleek design (4.75" W x 7"L x 1.5"H)
Internal 12-channel GPS
Operates on aircraft 10 to 35-volt power supply
Internal batteries for emergency use (up to 1.5 hours)
Jeppesen® NavData for the U.S., Canada, Central & South America
Full flight planning capability (10 flight plans of up to 100 legs each)
Full or split HSI screens with data fields
Vertical navigation routing
Calculator functions: fuel, winds, timers, trip computer
Aircraft checklists
Full simulator functions
Data storage on Compact Flash cards
Integration with other onboard navigation systems: autopilot, GPS, external antenna
Kneeboard design with R-A-M® and fixed mounting options
Specifications:
Processor: Samsung® Arm9 226 MHz
Dimensions: 4.75"W x 7"L x 1.5"D
Weight: 1.2 lbs.
Screen Display: 7" diagonal
Screen Resolution: 800 x 480 pixels
Screen Brightness: 400 nits
Data Storage: Compact Flash
Mapping/NavData: Aeronautical: Jeppesen, Land: TeleAtlas®, Marine: C-MAP® NT+
Power: Aircraft: 10 to 35-volt DC power less than 5 amps.
Batteries: 6 AA NiMH rechargeable*
Interface: Serial Port, USB
Antenna: Active: 5v DC, Dimensions: 3" diameter; 5 meter cable
*Optional
Key Functions:
A) Data Fields - Monitors data related to the current flight. User can choose several screen options and preset data fields based on mode of flight. Options include: interim and final destination; waypoint/airport info; distance; ETE; ETA; bearing; cross-track error; GPS info; as well as vertical navigation, fuel consumption, A-B function and timers.
B) Power - Brightness & contrast control, power-on/off unit.
C) Page - Displays 'Nearest' functions to include: Airports; VORs; NDBs; Intersections; ARTCC and FSS Frequencies; Points of Information (POIs).
D) GoTo - Allows direct 'GoTo' to any of the following: Cursor location, Airports, VORs, NDBs, Intersections and User Waypoints.
E) Cursor Control - Provides full range of panning capability, as well as auto info on map and NavData.
F) Menu - Easy access to all navigation and mapping functions.
G) Cycle - Function allows user to scroll between three pre-set data screens.
Frequently Asked Avmap EKP IV Questions
Q. What type of batteries should I buy for my EKP-IV?
A. Only use rechargeable batteries (unit requires six AA NiMH). Alkaline batteries may damage the unit and will void the warranty.
Q. I am trying to hardwire my EKP-IV to ship's power. What are the wiring schematics?
A. Red is positive. Black is ground. White is called a differential wire and is not used when hardwiring the unit.
Q. How do I get the latest software and Jep data for my AvMap?
A. The latest software can be downloaded from AvMap's website. Remind a customer to read all the information before installing software on their card. A typical Americas update is $78.00 which includes Jep data and the obstruction database. A compact flash card reader will be needed in order to perform the updates.
Popular Accessories for the AvMap EKP IV
Following are some common add-ons:
Straight Power Cable (ST IV Cord) is used for pilots who mount the EKP IV in their dash. The cable is open on one end so that it can be wired directly into an aircraft circuit breaker, eliminating the need for use of the cigarette jack.
Serial Cable enables the EKP IV or the GeoPilot Plus to interface with other on board flight systems such as an autopilot or EFIS. It can also be used to plug directly into a PC for use with the Jeppesen FliteStar program, enabling the user to create or transfer flight plans or user waypoints as well as storing flight tracks.
EKP IV Back Plate (IV Plate) is an economical and easy solution for mounting the EKP IV in aircrafts.
|
Price: $1,499.00
Buy Product Online | Visit Store Home
|
|
|
Manufactured by AvMap |
|
|
|
|
